dB Technologies DVA K5

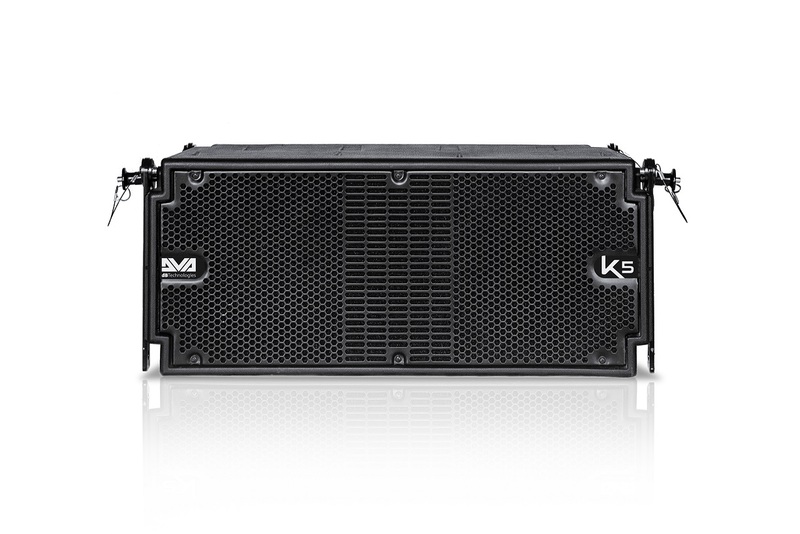

dB Technoligies DVA K5 - Active line array module

Featuring a Class D 500 W RMS Digipro® G3 digital amplifier, DVA K5 is  capable to reach up to 129 dB SPL and aims to inherit the success of the earliest model of the series DVA T4, thanks to technological upgrades partially derived from the most recent model of the series DVA T8.

The new DVA line array module comprises 2x 1,4” drivers, a 1x 6” neodymium midrange and a 1x 8” neodymium woofer.

Furthermore, an advanced DSP user interface allows an extremely precise system tuning: a double rotary encoder provides a separate tuning for LF correction (coupling) and MF/HF correction (high-angle midrange loss and air absorption compensation due to throw distance).

The module’s electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti-vibration metal structure which drastically reduces any resonance, allowing the cabinet to achieve an excellent acoustic response.

The unique design, the selected components and a state of the art amplifying technology come together to deliver an exceptional weight-performance ratio: each system weights 14,2 Kg. Moreover,  DVA K5 comes with a freshly designed frontal grille and an integrated rain cover.

Technical Data

• Speaker Type: 3-Way Active Line Array Module
• Frequency Response: [+/- 3dB] 70 - 19,000 Hz
• Max SPL: One Unit: 129 dB
• HF: 2x1" Voice Coil: 1.4 "
• MF: 1x 6.5" Neodymium  Voice Coil 2"
• LF: 1x8" Neodymium Voice Coil 2.5 "
• Directivity: (HxV) 100x15° Single unit
• Amplifier
• Amp Technology: Digipro® G3
• Amp Class: Class D
• RMS Power: 500 W
• Peak Power: 1000 W
• Cooling: Convection
• Power Supply: 500 W SMPS with Auto Range PSU
• Controller: DSP 56 Bit
• AD/DA Converter: 24 bit/48 KHz
• Limiter: Dual Active Multiband RMS, Peak, Thermal
• Crossover Frequency:  MF-HF1800 Hz
• Crossover Frequencies:  LF-MF340 Hz
• Signal Input: 1x XLR Balanced
• Signal Output: 1x XLR Balanced
• Power Socket: 1x PowerCON In, 1x PowerCON Out
• Controls: 1 x Input Sensitivity Rotary Switch, 1 x DSP Rotary Encoder (LF Correction), 1 x DSP Rotary Encoder (MF-HF Correction)
• Housing: Polypropylene PP metal reinforced
• Rigging Points: Integrated rigging hardware
• Width: 580mm
• Height: 240mm
• Depth: 327mm
• Weight: 14.2 kg
