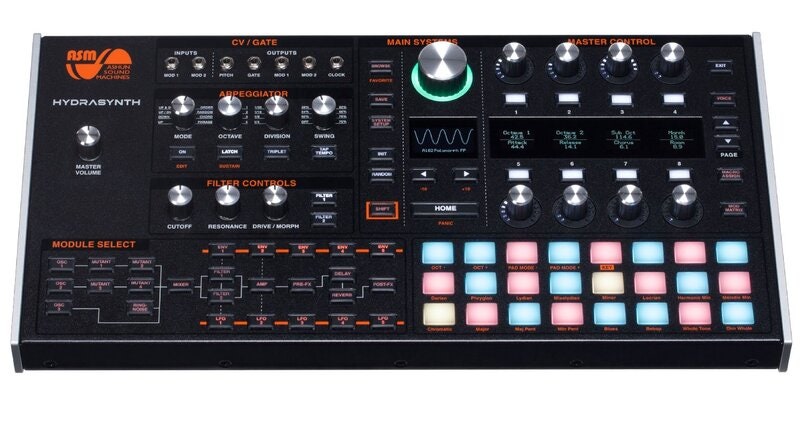

ASM Hydrasynth Desktop
Artikelnummer 4750020The HYDRASYNTH Desktop / Rack has the same great sound engine as the HYDRASYNTH Keyboard. The sound engine is a sound designers dream synth as well as a performing musicians ideal.
9195 kr/st
The sound engine is designed for maximum flexibility. At the same time, we designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts.
8 Voice Advanced Wavetable synthesis
2 Wavemorphing Oscillators
219 single cycle waveforms
- User wavetables - 8 user selectable ‘wavelist’ per osc to build user wavetables
- Every osc and patch can have its own user wavetable
- WaveScan parameter for modulating through wavetables.
- Keytracking – 0-200%
- +/- 3 octave tuning range
1 fixed Wave OSC
- 219 single cycle waveforms
- +/- 3 octave tuning range
- Keytracking – 0-200%
Dual Mutators per oscillator
- FM – Linear FM
- Selectable Modulator source
- Built in Sine & Triangle, OSC1, OSC2, OSC3, Mutators A, B, C, D, Noise gen, Ring Mod, External Mod 1&2 input.
- Selectable Modulator source
- WaveStack – Generates 5 detuned waves from input source. Detune amount.
- Pulse Width Mod – Adjust pulse width of ALL waveforms.
- PWSqueeze – Compresses the center section of the waveform. Differnnt type of PWM
- PW-ASM – 8 User adjustable wave squeeze/stretch points.
- Hard Sync – gives that classic sync sweep sound.
- Selectable Sync input source.
- Harmonic Sweep – will scan through the harmonics of the incoming sound.
- Dry/Wet mix to blend the original OSC source.
Noise Generator
- White, Pink, Brown noise sources
Ring modulator
- Selectable input sources
- OSC1, OSC2, OSC3, Noise, All Mutator outputs, External Mod ½ in.
- Depth control
Sound source mixer
- Mix the following sources - OSC1, OSC2, OSC3, Noise, and Ring Mod.
- Panning for each source
- Filter routing mix
- Solos for each source (solo status is saved in the patch)
Two Filters
- Series or parallel routing
- Filter 1
- 12 & 24db modern ladder (compensated)
- 12 & 24db vintage ladder (uncompensated)
- Threeler HP, LP
- MS20 HP, LP
- Low Pass Gate
- Vocal filter
- Multiple vowel order parameter
- Formant parameter
- Filter 2
- Continuously Variable Lowpass-Band pass-High pass (Oberheim SEM style)
